The core cutter design provides a clean, safe and quiet core cutter ensuring a good working environment and high quality output

The core cutter can handle a wide range of different core diameters which makes your production more flexible.

The machine is equipped with an automatic positioning feeder to handle cores up to 4 metres.
The core cutter performs set cutting.The machine is designed with standard components ensuring reliability and minimal maintenance.

Options

The core cutter can be equipped with a number of options:

Duo cut-For reducing burr on the in- and outside of the core

Belt hopper-One complete core bundle can be loaded into the hopper

Hopper table-Core buffer for different core sizes

Printer-Automatic printing on core for lengths above 300 mm

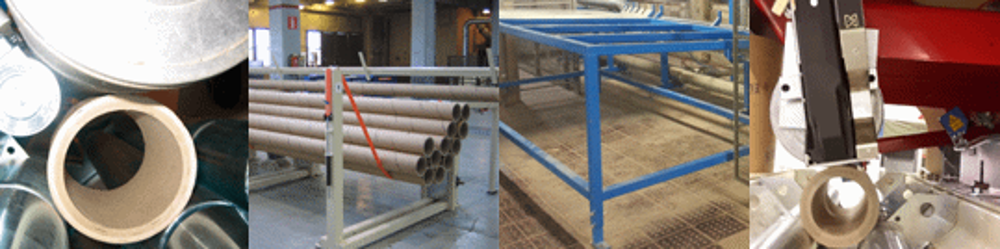

                  Duo cut                                                    Belt hopper                                       Hopper table                                          Printer

TECHNICAL DATA

Length accuracy:

+/- 0.5 mm

(+/-0.02”)

Inside core diameter:

70-330 mm

(2,8 – 13.0”)

Outside core diameter:

90-360 mm

(3.5 – 14.2”)

Wall thickness:

5-15 mm

(0.2 – 0.6”)

Cutting angle:

90°
